magnet lifter for steel plate

China magnet lifter for steel plate supplier

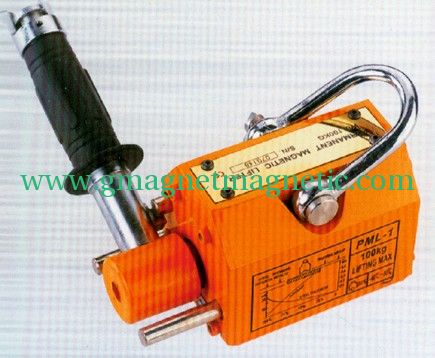

Large Image :  magnet lifter for steel plate

Product Details:

Place of Origin: China
Brand Name: GMT

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Delivery Time: according to your quantites
Payment Terms: TT
Contact Now
Detailed Product Description

Permanent Lifting Magnet is compact and self- contained. It is a new concept product for lifting and handling steel plates, pipes, beams and cylindrical work pieces of ferromagnetic materials. It contains powerful NdFeB permanent magnet to maintain holding power indefinitely. It is not only convenient in operation with a strong holding force, but also safe and reliable. No electric power is needed, so it can be operated in places where electric power is not available.

Our model for permanent lifting magnet is PML. It lifts, transports sand releases the load rapidly with the simple motion of a lever using a single operator. Once activated, a spring-loaded device blocks the maneuvering lever preventing any accidental deactivation. It features a 3.5:1 safety factor of the recommended load.

Permanent Lifting Magnet is widely used for lifting and hoisting in factories, warehouses, on wharves and at transport facilities.

Features:
● Available in the lifting capacities of 100kg, 300kg, 600kg, 1000kg, 1500kg, 2000kg, 3000kg and 6000kg.
● 3.5 times for safety factor.
● Self-contained, permanent magnet.
● No electrical power required.
● Self-locking safety block prevents accidental deactivation.
● Maintenance Free with zero running costs.

Operation:
● Simply move the lever to the ON position to engage the magnet while lifting materials.
● Safety lock keeps the permanent lifting magnet engaged until you release it.

Warning: Never move the lever to the ON position unless the permanent lifting magnet is placed on an iron or steel object.

Applications:
● Hundreds of lifting and positioning applications.
● Loading or unloading many work pieces including press molds, plastic molds, machined parts etc.
● Used as a part of magnet in the project of Magnetic Manhole Cover Lifter.
● With a hook, crane and beam, some pieces of permanent lifting magnets can lift large size of plate steel


Model

Rated
lifting
strength

(kgf)

Cylindrical
lifting
strength

(kgf)

Max.
pull-off
strength

(kgf)

W

L

H

I

Operation
temperature

(℃)

Dead
weight

(kg)

GMT-1

100

30

350

62

100

68

185

﹤80

3

GMT-2

300

100

1050

94

168

96

214

10

GMT-3

600

200

2100

125

235

115

230

20

GMT-4

1000

300

3500

135

283

140

325

36

GMT-5

 1500

500

5250

145

364

153

390

66

GMT-6

2000

600

7000

156

446

165

455

81

GMT-7

3000

1000

10500

216

453

176

520

160

GMT-8

6000

2000

21000

255

753

285

810

410
